The B747-400BDSF (BEDEK Special Freighter) is the ideal wide-body freighter with superb payload/range capabilities and fuel efficient, stage lll noise compliance.

Technical Specifications

EnginesCF6-80C2
Maximum Taxi Weight - MTW878,000 lbs398.25 ton
Maximum Take-Off Weight - MTOW875,000 lbs396.89 ton
Maximum Zero Fuel Weight - MZFW635,000 lbs288.03 ton
Maximum Landing Weight - MLW652,000 lbs295.74 ton
Max Payload253,000 lbs114.76 ton
Operation Empty Weight357,000 lbs161.93 ton
Main Deck Usable Volume28,820 ft3816.9 m3
Lower Decks Usable Volume5,356 ft3151.92 m3

Recommended Loading Configurations

PositionQtyULDContourMax Height
Imperial/Inch
Max Height
Metric/M
Max GW
Imperial/Pound
Max GW
Metric/Kg
A11PMCQ6 as A1962.445,760.672613
A2, B12PMCQ6962.445,760.672613
CR, CL, DR, DL, ER, EL6PMCQ6962.4410,624.084819
GR, GL,HR, HL, JR, JL6PMCQ71182.9918,119.798219
FR, FL, KR, KL, LR, LL, MR, ML, PR, RR, RL, SR, SL13PMCQ71182.9910,624.084819
PL1PMCQ71182.9910,624.084819
QR, QL2PYBQ71182.994,673.802120
T1PMCQ71182.994,499.632041

Additional Requirement: Size code A & M pallets in zones G, H& J need additional restraints if they exceed the ULD limits.

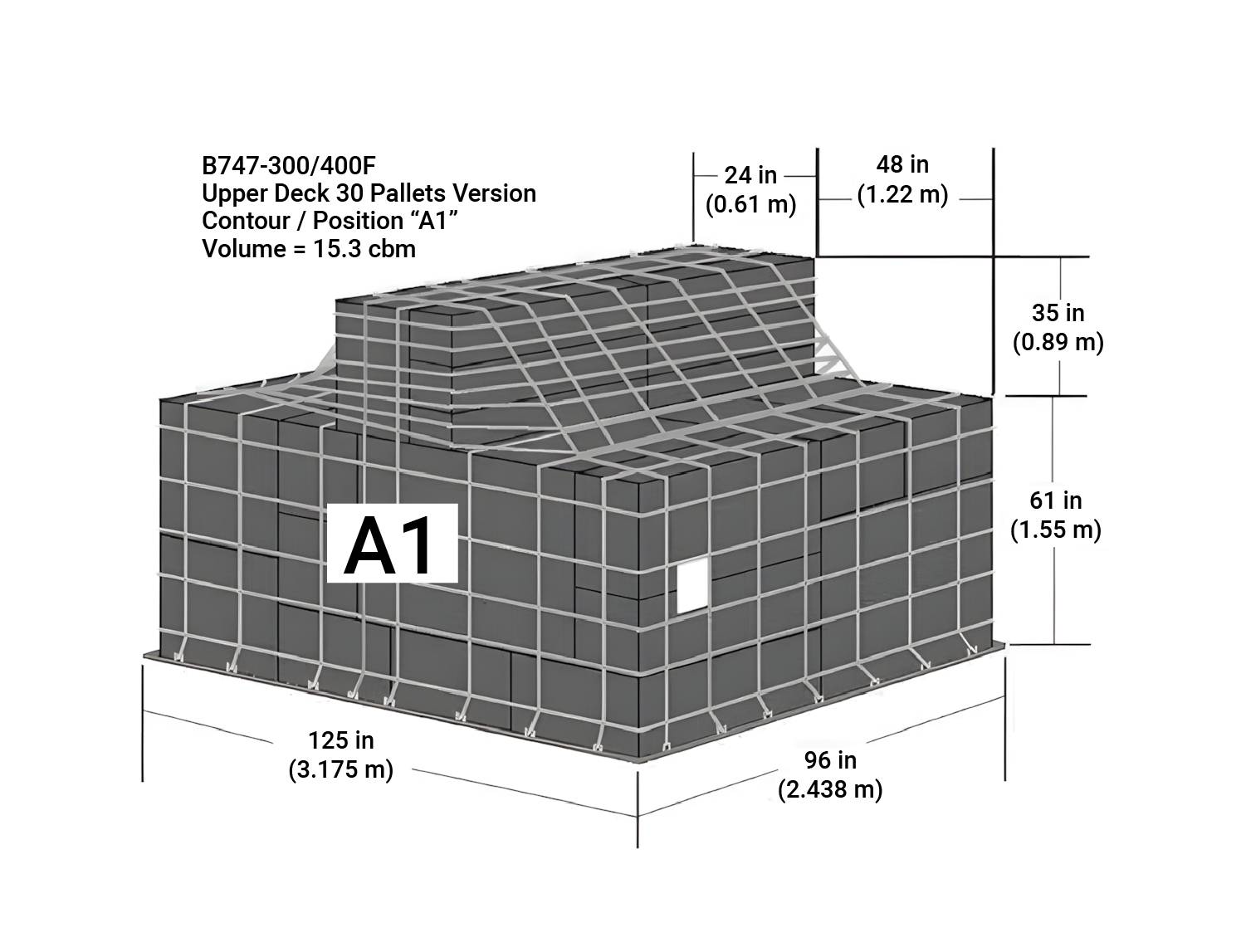

A1
Q6

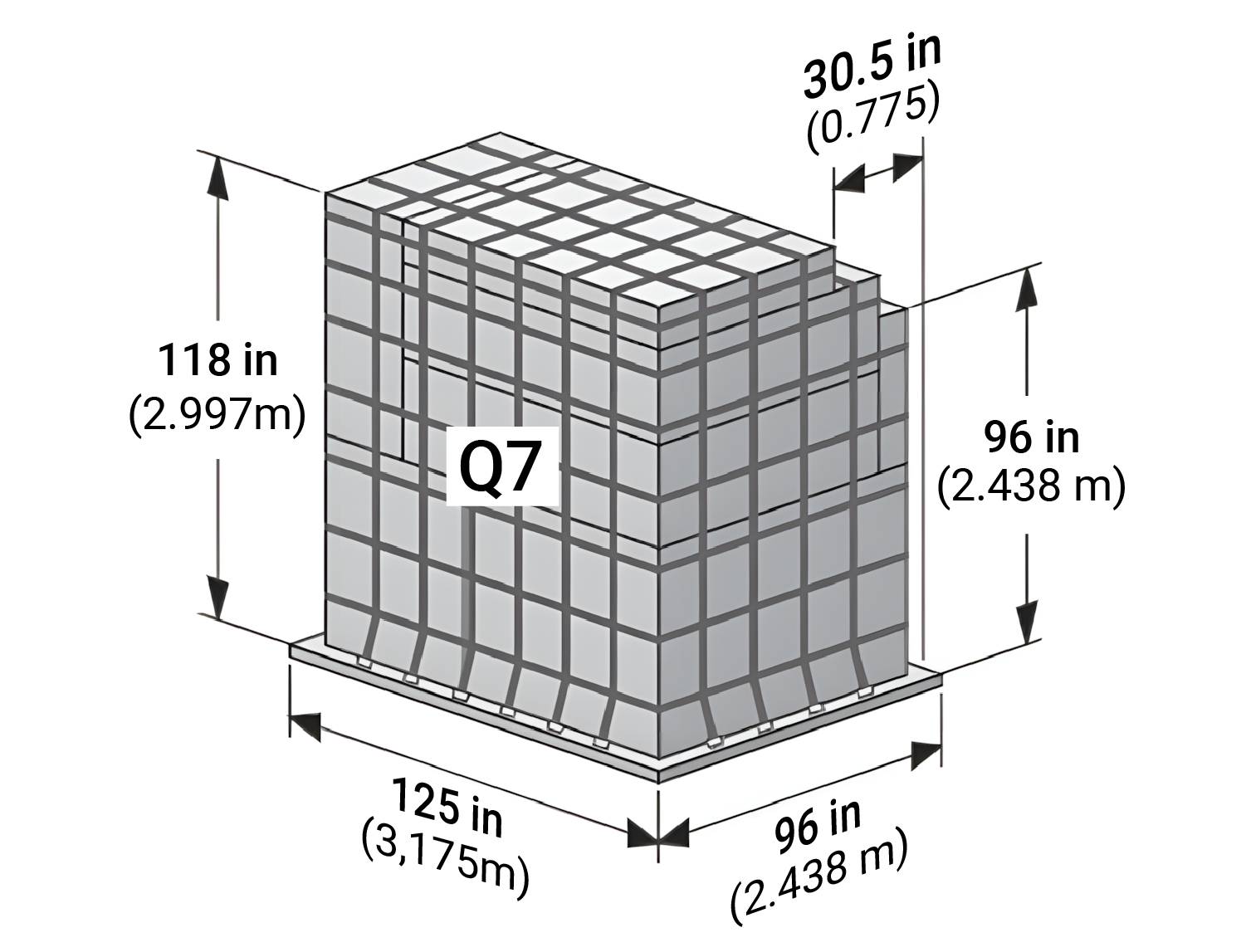

Q7

Recommended Loading Configurations

PositionQtyULDContourMax Height
Imperial/Inch
Max Height
Metric/M
Max GW
Imperial/Pound
Max GW
Metric/Kg

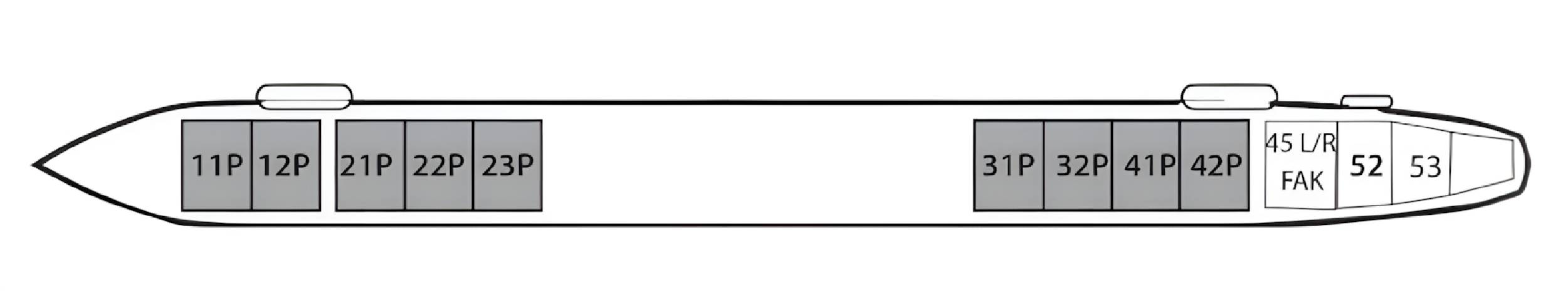

11P,12P, 21P, 22P, 23P, 31P, 32P, 41P, 42P9PMCPWG6411,098.071.635034

Main Deck

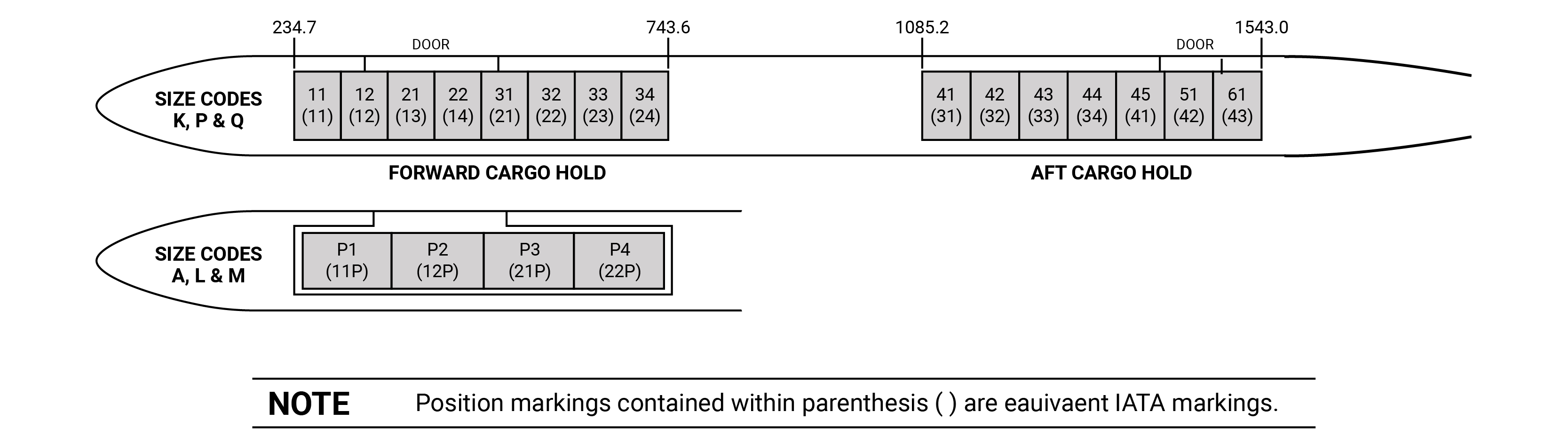

Forward and AFT Lower Deck

The Airbus A330-200/300F sets new standards for efficiency, volume & payload, and integration with the Airbus fleet, delivering unparalleled usability and economics in its market segment.

Technical Specifications

EnginesA330-300P2FA330-200P2F
Maximum Structural Payloadup to 62 tup to 60 t
Range Capabilityup to 3,600 nmup to 3,900 nm
Maximum Take-off Weight (MTOW)212 – 233 t230 – 233 t
Maximum Landing Weight (MLW)177 – 187 t180 – 182 t
Maximum Zero Fuel Weight (MZFW)167 – 175 t168 – 170 t

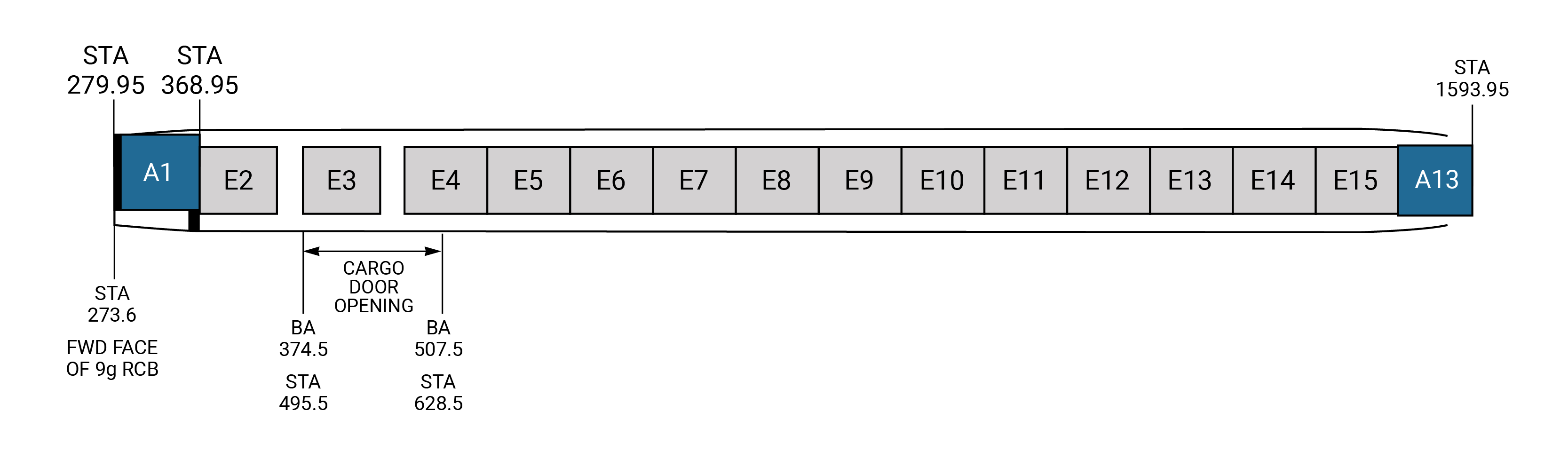

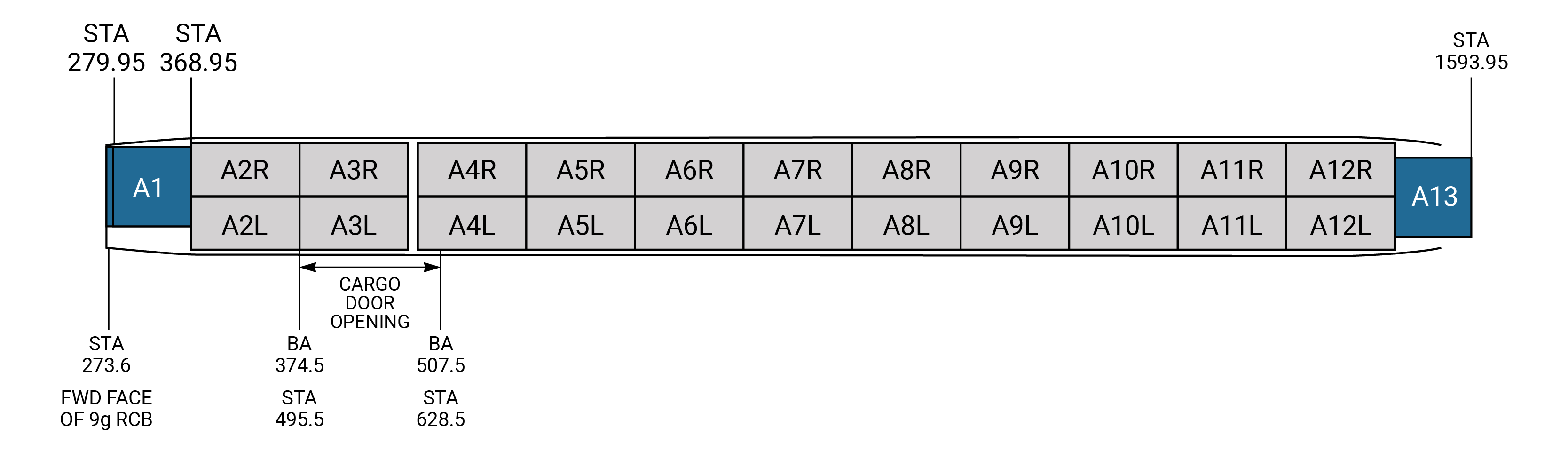

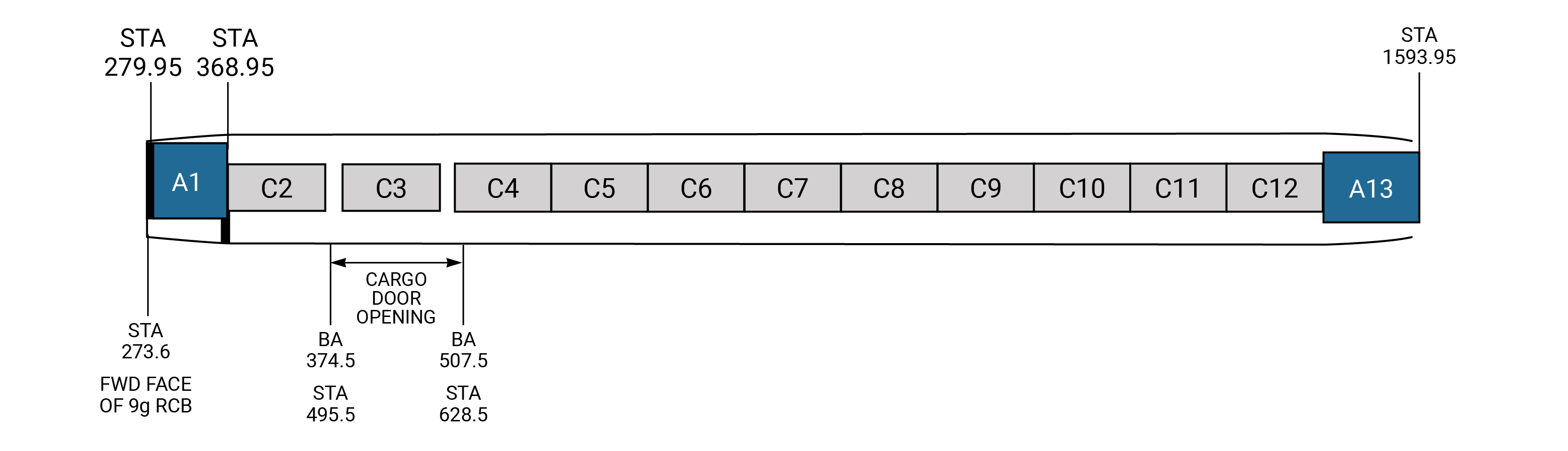

Main Deck Cargo Loading

A330-300P2F

A330-200P2F

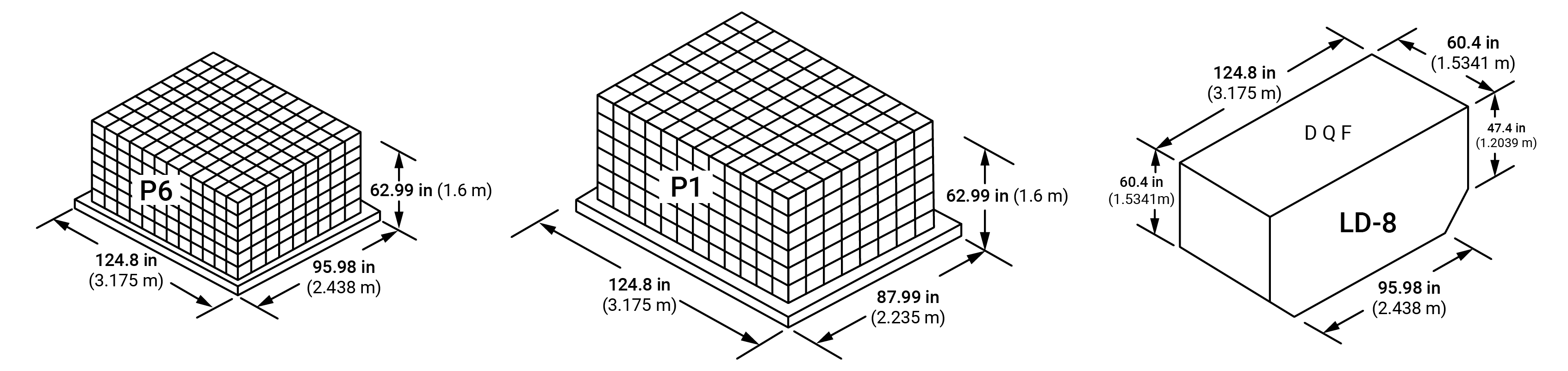

Lower Deck Cargo Loading

A330-300P2F

A330-200P2F

Powered for your Cargo

SIDE BY SIDE 96“

AMA CONTAINERS

SIDE BY SIDE 88“

SINGLE ROW 88“ & 96“

16/20FT PALLET (OPTION)

16/20FT PALLET (OPTION)

Technical Specifications

EnginesGE90-115
Maximum Taxi Weight - MTW352,441 Kg777,000 Lbs
Maximum Take-Off Weight - MTOW351,534 Kg775,000 Lbs
Maximum Landing Weight - MLW264,444 Kg583,000 Lbs
Maximum Zero Fuel Weight - MZFW253,105 Kg558,000 Lbs
Maximum Structural Payload - MSP *100,698 Kg222,000 Lbs
Maximum Fuel Capacity - MFC181,283 L / 145,538 Kg47,890 USG / 320,863 Lbs
Total Cargo Volume819 m328,936 ft3
Main Deck Position33x ULD 96" x 125"
Lower Deck Position14x ULD 96" × 125"
Bulk17 m3600 ft3
*With powered cargo loading system

MULTIPLE CONFIGURATIONS FROM COMMERCIAL TO MILITARY

SIZE CODE G
(13) 96’’ x 238.5’’ ULD’s plus (6) ULD’s
96’’ x 125’’ plus (1) ULD 96’’ x 125’’
placed laterally
SIZE CODE B CRAF PROGRAM(MILITARY)
(36) side by side ULD’s 88’’ x 108’’
plus (1) ULD 88’’ x 108’’ placed laterally
SIZE CODE B (MILITARY)
(42) ULD's 108” x 88”
SIZE CODE R
(21) lateraled ULD’s 96’’ x 196’’
plus (1) ULD 96’’ x 125’’ placed laterally
SIZE CODE G CENTRELINE
(11) 96’’ x 238.5’’ ULD’s plus (4) ULD’s
96’’ x 125’’ plus (1) ULD 96’’ x 125’’
placed laterally

47 POSITIONS / 819 M3 / 28,739 FT3

+10 positions / 164m3 / 5,800ft3 vs
777-200LRF
+8 positions / 68m3 / 2,428ft3 vs
747-400F

CROSS SECTION

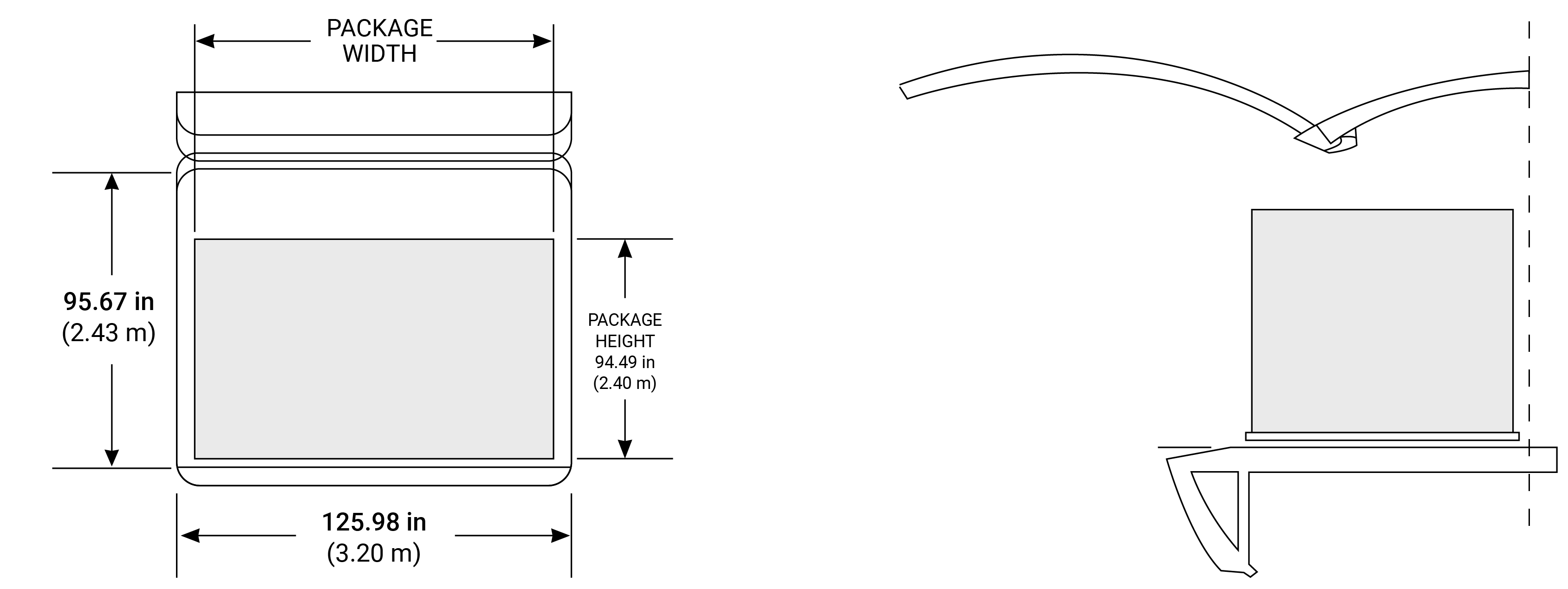

MAIN CARGO DOOR

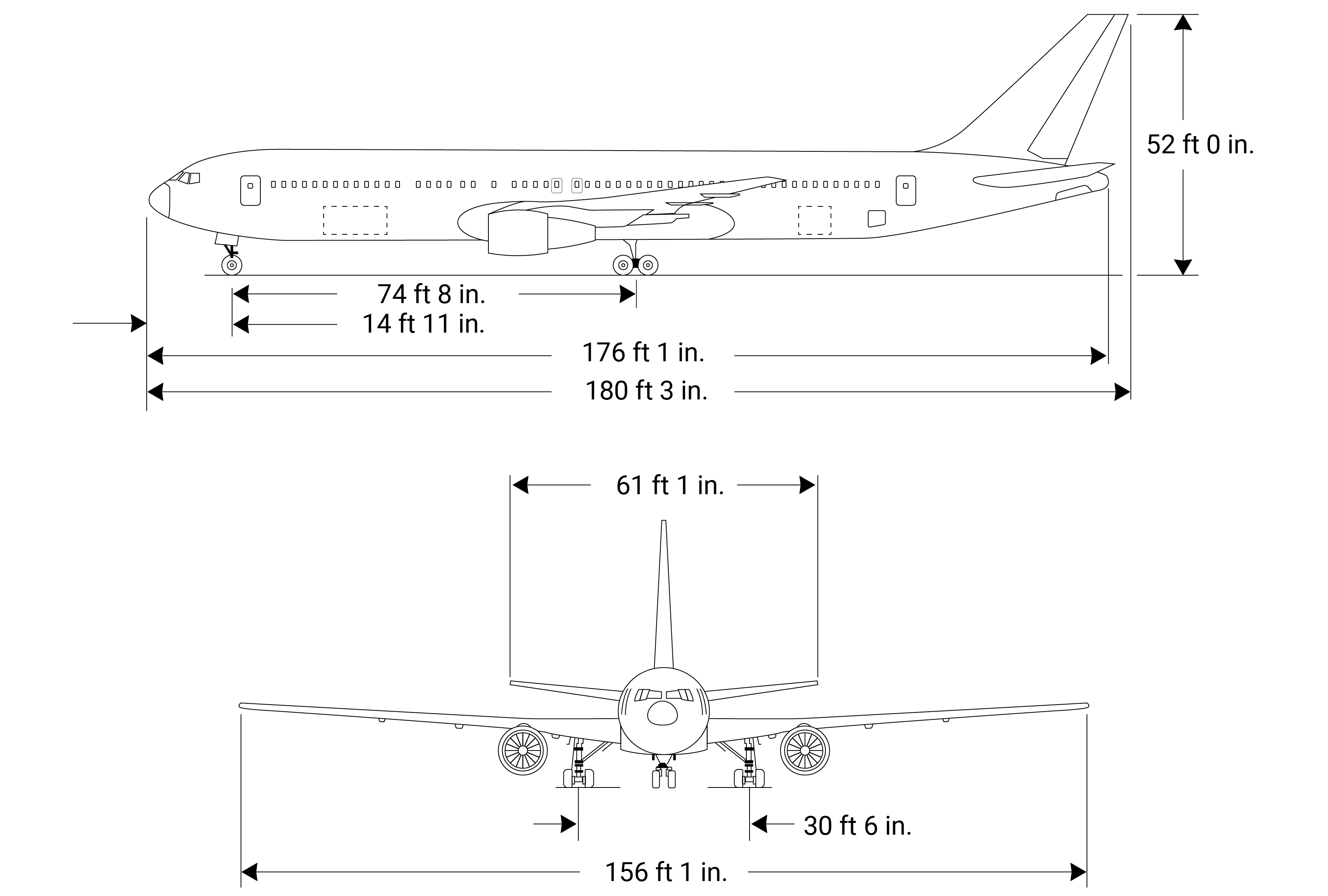

DIMENSIONS
